Used 74 SM

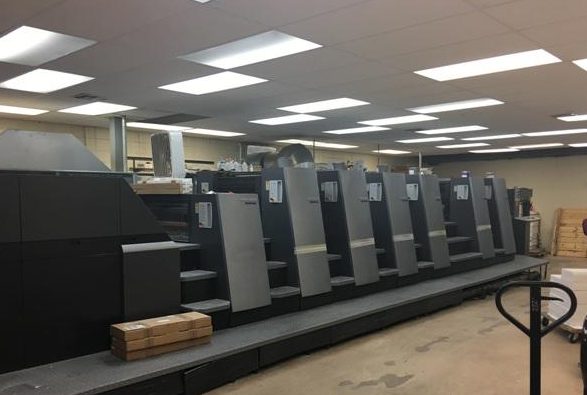

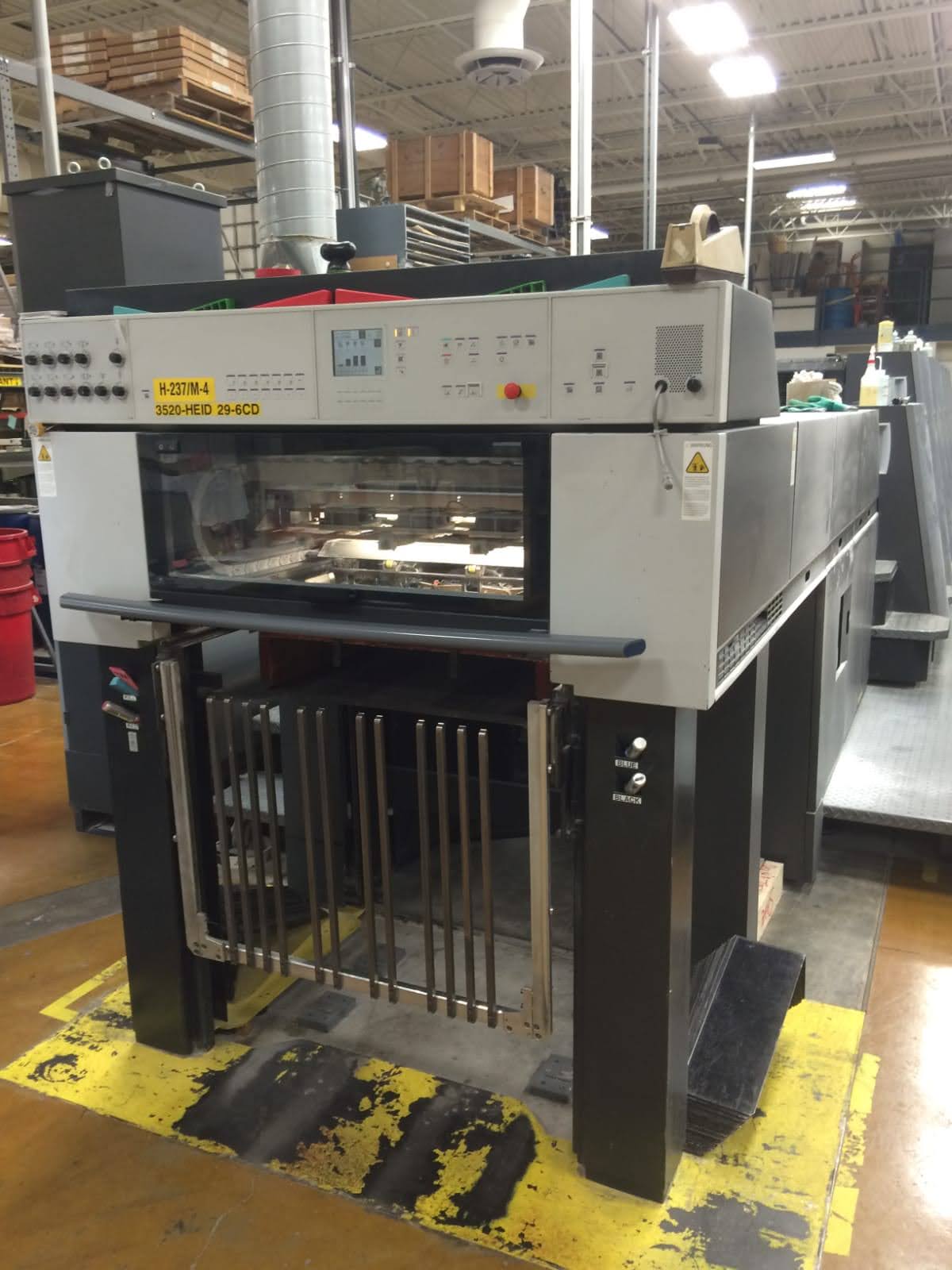

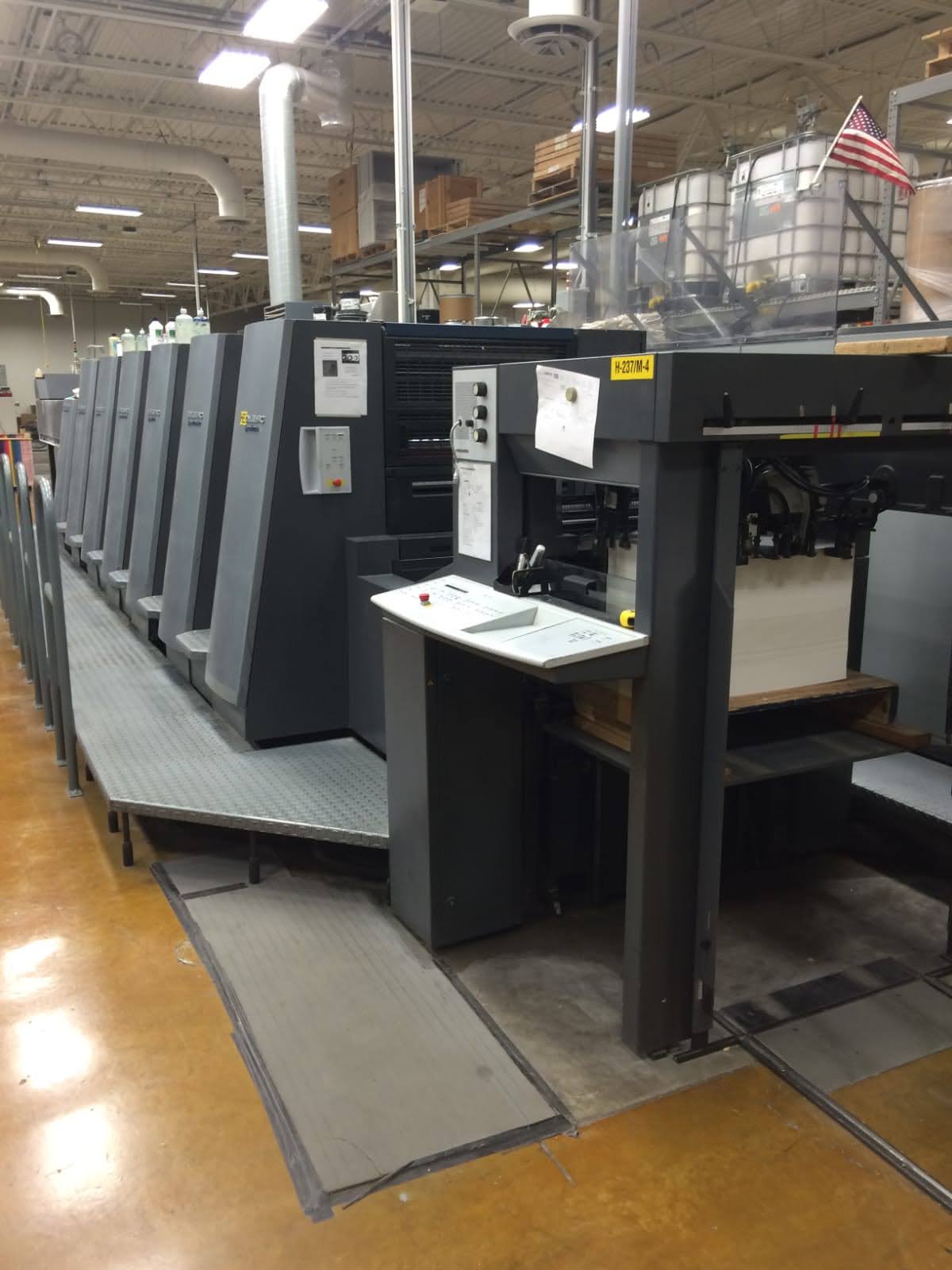

Heidelberg Speedmaster CD 74 6 Color – 2001

Used printing press specs:

• Serial # 4500xx
• F format 23 X 29
• 0.001 to 0.032 sheet thickness
• Chilled rollers
• 15,000 Sheets/hr
• Auto blanket washers

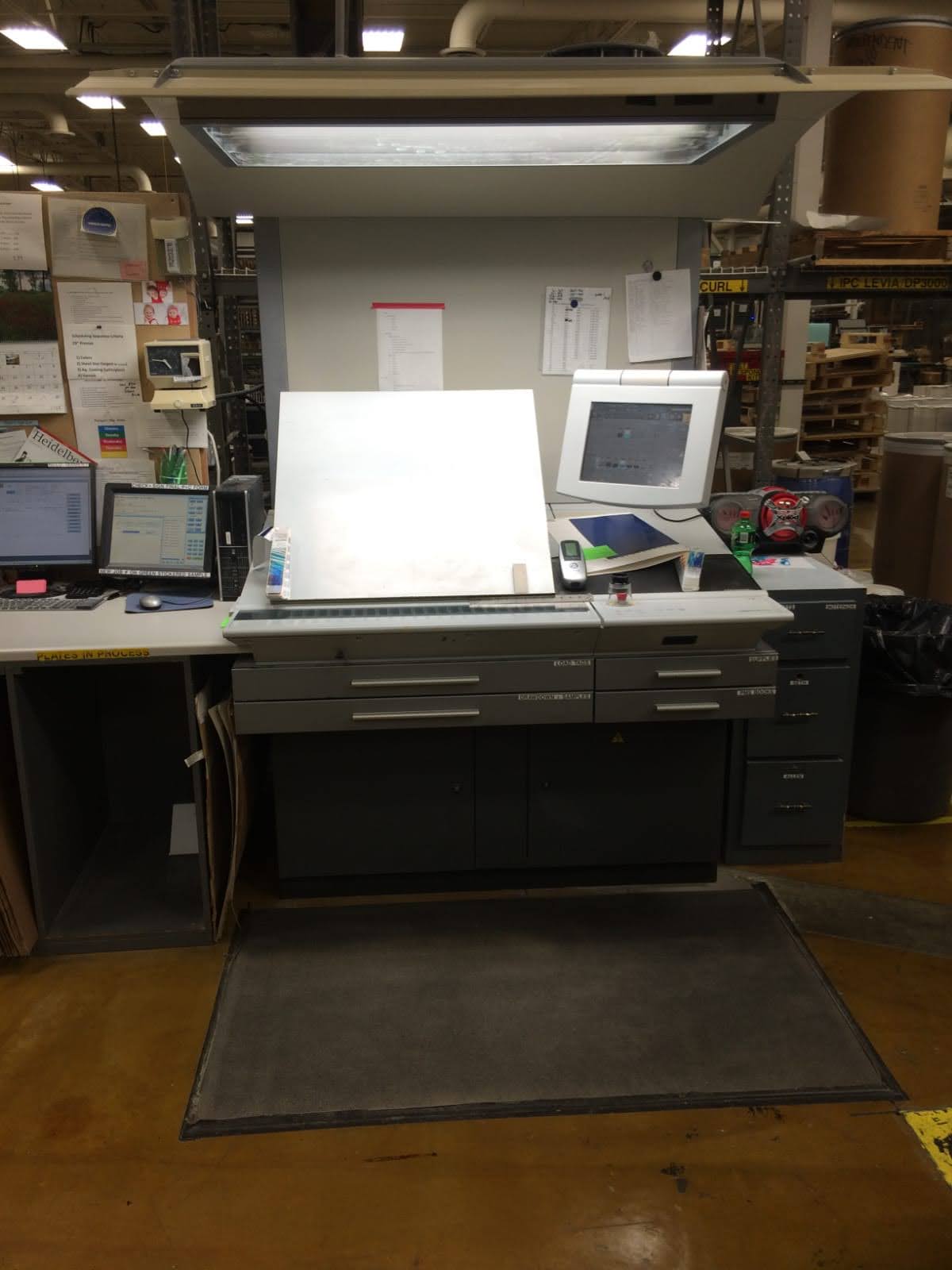

• CP 2000 Consul (software upgrade 2019)
• Parts and operating manuals
• Extended delivery with CP Tronic IR Dryer
• Grafix Powder Sprayer
• Non-stop feeder and delivery
• Semi auto plate hangers
• Auto roller washers
• 190,997,625 Impressions as of (2020 Jan)

Category: Tags: ,

Description

Category: Sheet Fed
Manufacturer: Heidelberg
Model range: Speedmaster SM 74
Colours: 6
Year: 2001
Location: United States

Speedmaster CD 74 are color models ideally suited for print shops with a professional approach to satisfying growing customer requirements or managed different market environments. The Heidelberg CD 74 is a reliable and productive machine trusted world wide.



Printing stock
Max. sheet size 530 mm x 740 mm (20.87 in x 29.13 in)
Min. sheet size 210 mm x 280 mm (8.27 in x 11.02 in)
Max. print format 510 mm x 740 mm (20.08 in x 29.13 in)
Thickness 0.03 mm – 0.60 mm (0.0012 in – 0.0236 in)
Gripper margin 8 mm – 10 mm (0.32 in – 0.39 in)
Print output
Maximum 15,000 sph
Plate cylinder
Cylinder undercut 0.15 mm (0.0059 in)
Distance from lead edge of plate to lead edge of print 59.50 mm (2.34 in)
Plates
Length x width 605 mm x 745 mm (23.82 in x 29.33 in)
Thickness 0.25 mm – 0.30 mm (0.0098 in – 0.0118 in)
Blanket cylinder
Length x width, blanket 627 mm x 772 mm (24.69 in x 30.39 in) metal-backed
Thickness blanket 1.95 mm (0.0768 in)
Length x width, packing sheet 550 mm x 750 mm (21.65 in x 29.53 in)
Cylinder undercut 2.30 mm (0.0906 in)
Pile heights
Feeder 1,060 mm (41.73 in)
Delivery 597 mm (23.50 in) standard delivery
1,160 mm (45.67 in) high-pile delivery
Sample configuration
Basis Speedmaster SM 74-4
Number of printing units 4
Length 5.69 m (224.02 in)
Width 3.07 m (120.87 in)
Height 1.93 m (75.98 in)
Sample configuration 2
Basis Speedmaster SM 74-4 with high-pile delivery
Number of printing units 4
Length 7.93 m (312.20 in)
Width 2.90 m (114.17 in)
Height 1.93 m (75.98 in)
